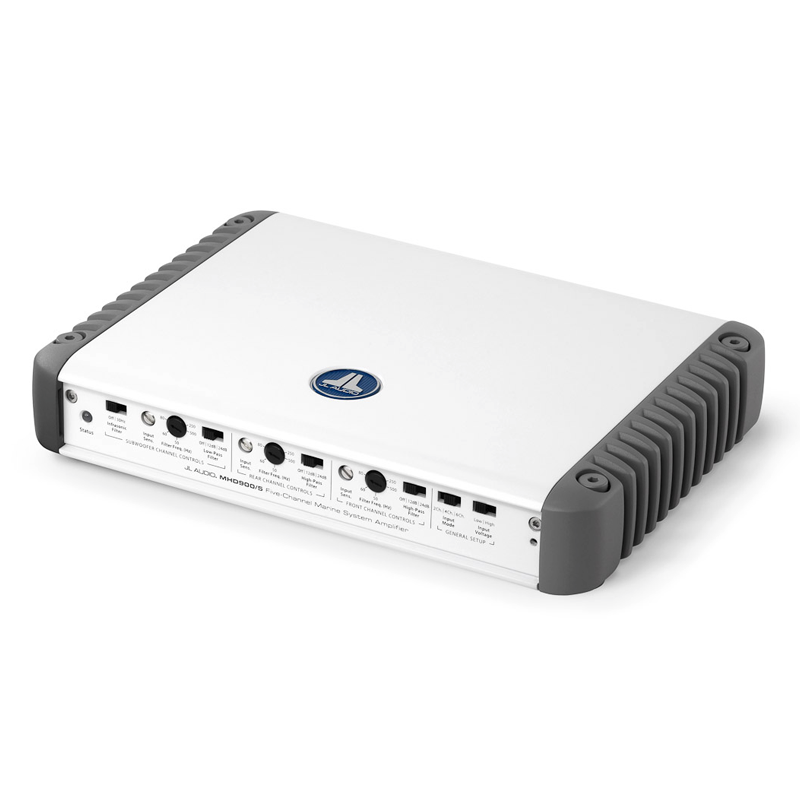

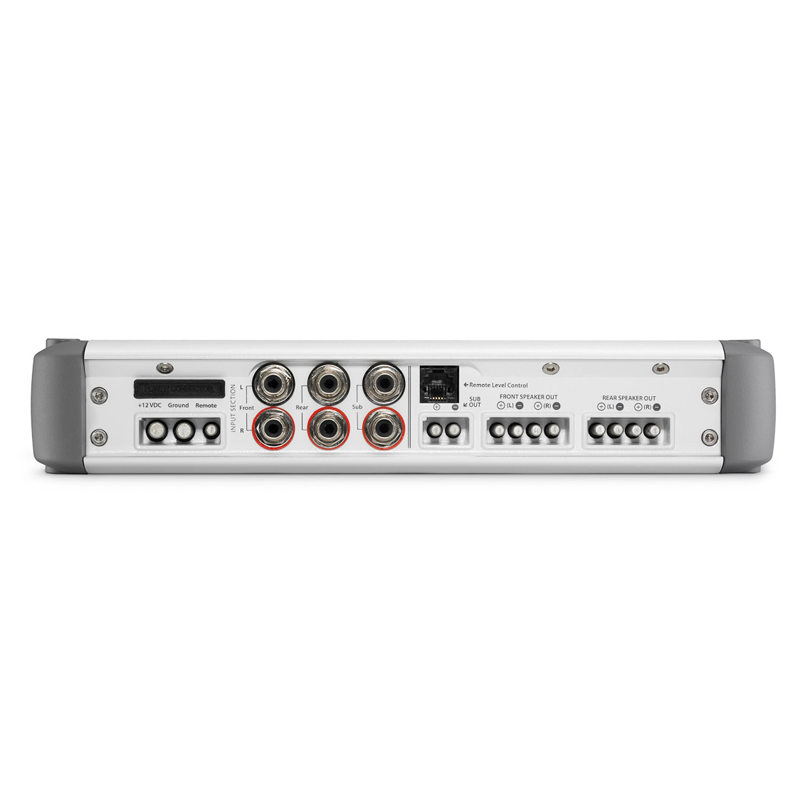

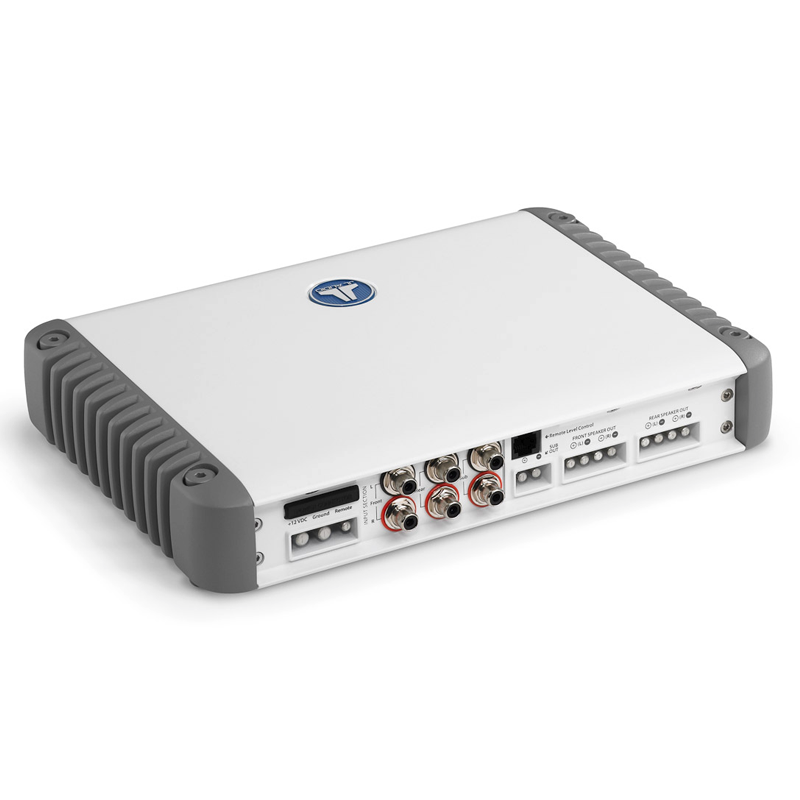

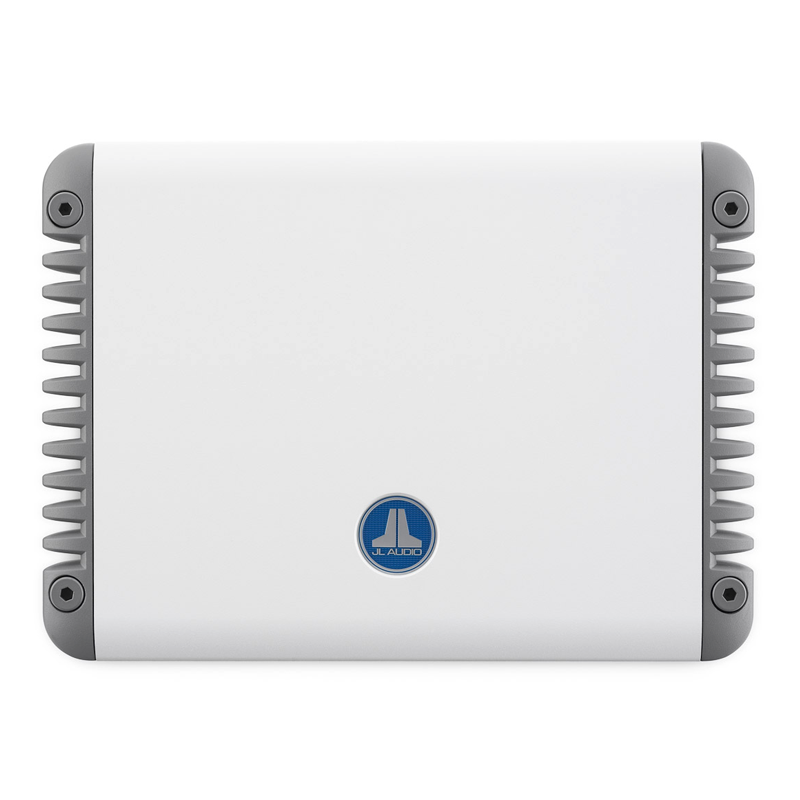

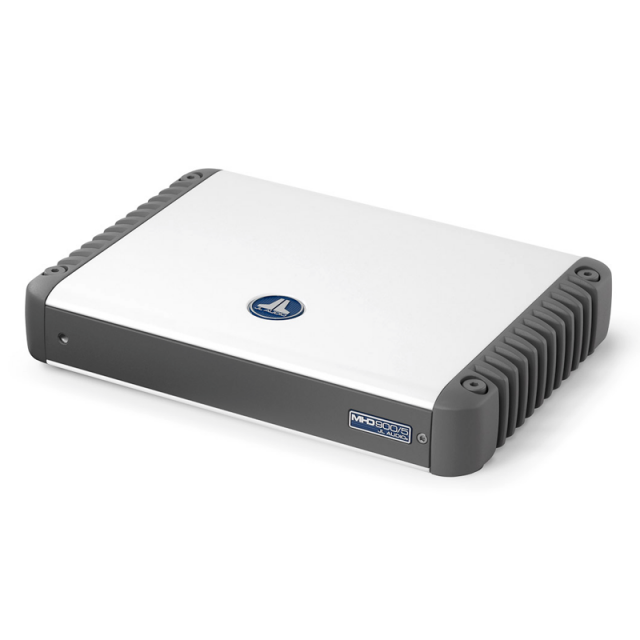

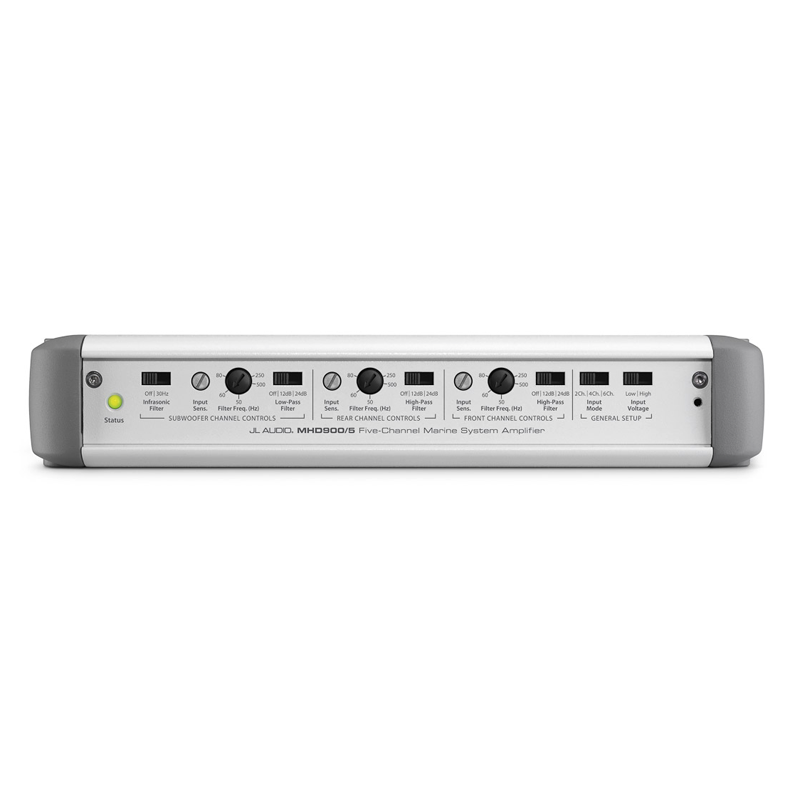

JL Audio MHD900/5 900 Watt 5 Channel Marine Amplifier

JL Audio MHD900/5 900 Watt 5 Channel Marine Amplifier
Purchase JL Audio MHD900/5 900 Watt 5 Channel Marine Amplifier
  • SKU: MHD900-5
  • $1,599.99

    In stock
Free Shipping
Orders over $100. Lower 48
Free Returns
No-hassle returns. We'll pay for the return label.
60-Day Guarantee
We stand by our products. If an issue arises, we'll help you out.

5-Channel Class D Marine System Amplifier, 100 W x 4 + 500 W x 1

Thanks to its ability to act as a "one-box solution", the MHD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.

While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!

Using our Single Cycle Control switching design and R.I.P.S technology, the MHD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Product Specs
Rated Power @ 4 Ohm
100W x 4 +500W x 1
Rated Power @ 2 Ohm (Full Range)
75W x 4 + 500W x 1
Rated Power @ 4 Ohm (Bridged)
150W x 2 + N/A
Frequency Response
12Hz - 28kHz/10 Hz - 1 kHz
Input Sensitivity
200mV - 8V
Filters Ch. 1&2
High Pass Only
Filters (Ch. 3&4)
High Pass Only
Filters (Subwoofer)
Low Pass
Crossovers
12/24 dB/Octave (Full Range & Subwoofer)
THD+N @Rated Power
<0.03% @ 2 Ohms
Selectable Input Mode
Yes (2/4/6 Ch.)
Pass-Through Pre-Amp Output
No
Recommended Power Wire
4 AWG
Height
1.93" (49mm)
Width
10.74" (273mm)
Depth
8.29" (211mm)
Remove Level Control
Yes (HD-RLC)
